Vibronic
Point level detection

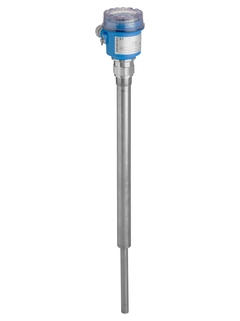

Soliphant FTM21
Compact limit switch with extension tube for bulk solids with stainless steel housing (316L)
- Add to Cart
- Select & Size
- Configure
-
Pricing after login and configuration
Soliphant FTM21 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Benefits
No calibration required, easy commissioning (plug and play)
Measurement not affected by build-up or external vibration
No mechanically moved parts, free of maintenance
Sensor material 316L, abrasion resistant even with building materials
Plastic housing with cover with sight glass, switch status visible from outside;
also aluminium housing availableNot affected by flow noises
Available with explosion protection certificates
Field of application
Point level switch for fine grained solids
Process connections: Threads
Temperature: -40 to +150°C (-40 to +300°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor length: 500mm, 1,000mm, 1,500mm
Sensor material: 316L
International explosion protection certificates
