Ceraphant PTP33B - Absolute and gauge pressure

Absolute and
gauge pressure

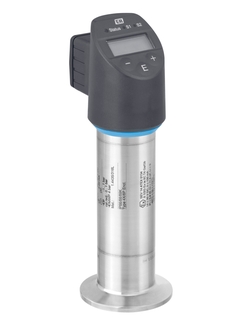

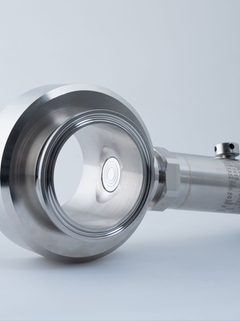

Ceraphant PTP33B

Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications

Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Filter Measuring / Application task
Measuring / Application task

Configure to download the CAD drawings of this product

  • Measuring principle

    Pressure switch

  • Characteristic

    Intelligent pressure switch with metal diaphragm for hygienic applications,
    longterm stable

  • Supply voltage

    10....30 VDC

  • Reference Accuracy

    0.5 %,
    Platinum: 0.3 %

  • Long term stability

    0.2 % of URL/year

  • Process temperature

    -40 °C...+100 °C
    (-40 °C...+212 °F)

  • Ambient temperature

    -20 °C...+70 °C
    (-4 °F...+158 °F)

  • Measuring cell

    +400 mbar....+40 bar
    (+6 psi....+600 psi)

  • Max. overpressure limit

    160 bar (2320 psi)

  • Process connection

    Thread: M24

  • Process connection hygienic

    DIN11851, Tri Clamp, SMS, Varivent

  • Communication

    1x PNP switch
    2x PNP switch
    1x PNP switch + 4...20 mA analogue

  • Design approvals

    EN 10204-3.1 final inspection report,
    Cleaned from oil and grease,
    Set min alarm

  • Hygienic approvals

    FDA concurring
    3A, EHEDG,

  • Specialities

    Digital display,
    Fully welded process connections
