Conductive
Point level detection

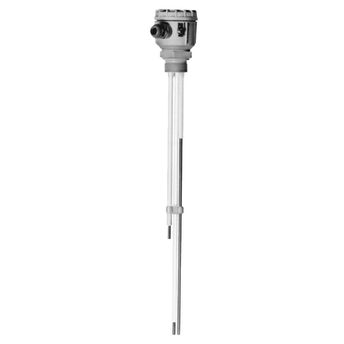

Triple rod probe 11363Z
High resistant probes for corrosive liquids in plastic vessels
- Add to Cart
- Select & Size
- Configure
-
Pricing after login and configuration
-
©Endress+Hauser
The triple rod probe 11363Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. Three different limit points can be detected with one probe in vessels with electrically conducting walls.
Benefits
Reliable and safe measurement
Safe measurement even for applications in explosion-hazardous area
Variable process connections for various applications
Field of application
Two-point point level detection in plastic vessels and vessels made of non-conducting material. For applications in explosion-hazardous areas or as overfill prevention for water-polluting liquids.
Process connections: Threads and flanges
Measuring range: 100 to 4,000mm (5.9 to 157")
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +30bar (-15 to +435psi)
Components: Transmitter FTW325
International explosion protection certificates, overfill prevention WHG
Features and specifications
Documents / Manuals / Software
Accessories / Spare parts
Predecessor / Successor
Predecessor: 11363
