Liquiline Control CDC30, 230 VAC version bundle

Automatic cleaning system Liquiline Control CDC30 (230 VAC)

Basic solution for the realization of a fully automatic cleaning system for retractable assemblies

71552786
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Price after configuration in cart

This product is not available in this market.

Benefits at a glance

  • Stable measurements and easy maintenance for your pH/ORP measuring points with Liquiline Control. The product bundle consisting of the Liquiline CM448 transmitter, the Cleanfit Control CYC25 cleaning unit and the CYR10B cleaning injector ensures fully automatic cleaning of your sensors. All products are pre-assembled and wired on a mounting plate. The Chemoclean Plus software provides parameterizable flushing and/or cleaning programs. The system is compatible with Cleanfit retractable assemblie

  • High process reliability and low maintenance

    Minimal downtime with Liquiline Control CDC30. With the system, you no longer have to worry about almost anything during measurements, as the system takes care of sensor cleaning completely. You save time and have less work, especially if the sensors in your application need to be cleaned frequently.

  • Pre-configured and preassembled basic solution

    Simple and fast commissioning: Everything ready to go, all you have to do is quickly mount the panel on the wall and/or in the control cabinet. And since everything is already wired, the connection to your measuring point ist also done in no time at all.

  • Adjustable, pre-configured cleaning programs

    Parameterizable rinsing and/or cleaning programs, either time-controlled or cycle-controlled – just as it suits your application.

  • Rinsing and cleaning cycles without additional dosing pump

    The Chemoclean CYR10B cleaning injector for dosing cleaning concentrate is a spray cleaning system for pH/ORP sensors as well as for oxygen and turbidity sensors.

Bundle in Detail

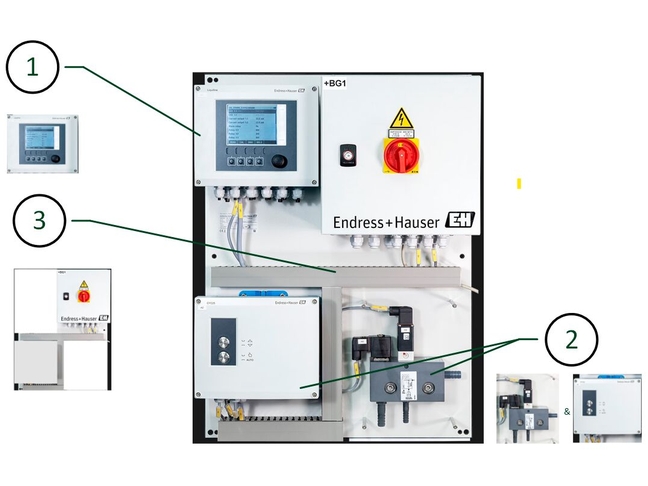

Overview of all bundle parts

Components and Pre-Configurations

  • Fixations

    To ensure the compatibility of the components with one another it has given certain fixations. Open parameters give you the freedom for individual configuration.

    Components can be configured within the bundle in the cart
  • Components
    Liquiline CM448 is a digital transmitter for pH, ORP, conductivity, oxygen, turbidity and more
    1

    8-channel transmitter
    Liquiline CM448

    Fixations:
    CM448-AAB2A61AABAB
    Power Supply:
    1
    100...230VAC (50/60Hz)
    Approval:
    AA
    Non-hazardous area
    Digital Communication:
    B
    Webserver+optional outputs
    Digital Sensor; Output; Input:
    2A6
    2x; 2x 0/4..20mA, 4x relay,4x digital; 4x digital
    Cable Entry Housing, Sensor:
    AA
    Metric, Metric
    Female Jack Fieldbus Communication:
    BA
    W/o
    Cable Entry Set+female Jack:
    B
    Mounted
    >>Software:
    EF
    Chemoclean Plus
    Power Supply:
    6
    24VDC
  • Automated sensor cleaning in combination with Liquiline CM44 and Chemoclean Plus
    2

    Cleaning unit
    Cleanfit Control CYC25

    Fixations:
    CYC25-A _
    Power Supply:
    A
    24V DC, provided by customer
    >>Accessory Mounted:
    NA
    Output interface terminal, 2x sensor transformation 8V-24V DC signal analysis position switch
    >>Accessory Enclosed:
    PB
    Injector CYR10B (24V DC)
  • Endress+Hauser
    3

    Technical Special Product Analysis CSOL

    Fixations:
    CSOL-PO8AC2
    >Bundle specification:
    TG
    Bundle 17 Liquiline Control CDC30; 115..230 VAC
    Description:
    P
    Panel
    Application:
    O8
    Other
    Modification:
    AC2
    Cleaning automatic
