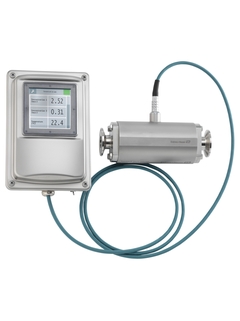

Picture of concentration measuring device Teqwave H for liquid analysis in hygienic applications

Teqwave H – Ultrasonic concentration meter

Inline device with best-in-class hygienic design – plug and play for food and beverage processes

D9HB
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

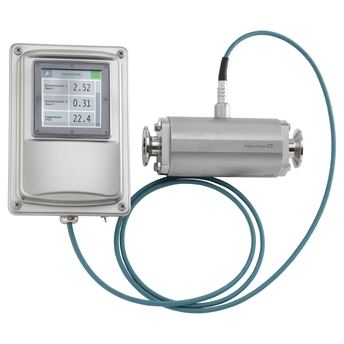

Picture of concentration measuring device Teqwave H for liquid analysis in hygienic applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Teqwave H – Concentration measuring device for real-time liquid analysis in hygienic applications

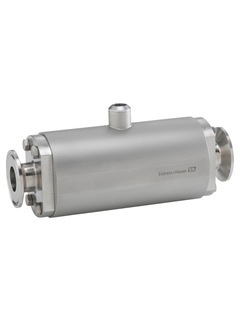

Picture of concentration measuring device Teqwave H sensor with Tri-Clamp connections
  • F
  • L
  • E
  • X
©Endress+Hauser

Teqwave H sensor with with Tri-Clamp connections

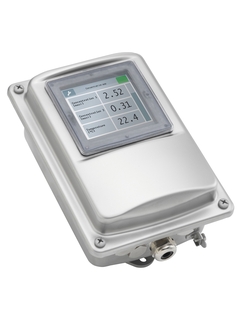

Picture of concentration measuring device Teqwave H transmitter with stainless steel housing
  • F
  • L
  • E
  • X
©Endress+Hauser

Teqwave H transmitter with stainless steel protective housing

Teqwave H – Concentration measuring device for real-time liquid analysis in hygienic applications

Specs at a glance

  • Max. measurement error

    Acoustic density: ±0.01g/cm³
    Temperature: ±0.5K
    Sound velocity: +-2m/s

  • Measuring range

    Concentration According to concentration app data sheet, maximum 0 to 100 %
    Sound velocity 600 to 2000 m/s
    Temperature, maximum 0 to +100 °C (32 to +212 °F)
    Acoustic density 0.7 to 1.5 g/cm³

  • Medium temperature range

    0 to 120°C (32 to 248 °F)

  • Process temperature

    0 to 120°C (32 to 248 °F)

  • Max. process pressure

    max. 16 bar at 20 °C (232 psi at 68 °F)

  • Process pressure

    max. 16 bar at 20 °C (232 psi at 68 °F)

  • Wetted materials

    Stainless steel1.4404 (316L)

Field of application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. End customers and equipment manufacturers value its highly accurate in situ concentration measurement and hygienic design. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs by flexible definition and extension of your application range.

  • The acoustic waveguide measures precisely and reliably, even the smallest changes are detected

  • Continuous quality monitoring of beverages and in cleaning processes

Device properties

  • Nominal diameter: DN 25 (1")

  • Sensor housing made of stainless steel (3-A, EHEDG)

  • Accurate and independent of flow profile

  • Industry-compliant, easy installation via DIN rail and pipe mounting set

  • 3.5" TFT color touch screen or LED indication

  • 4-20 mA, Modbus TCP

Benefits

  • High accuracy and repeatability – concentration calculation with latest algorithms

  • Fulfilment of hygienic requirements – easily cleanable full-bore sensor

  • Full transparency – constant monitoring of product quality without sampling

  • Highest process safety – reliable metering due to robust, maintenance-free sensor

  • Customized usage – innovative application concept, expendable for changing measuring tasks

  • Simplified process control – user-friendly operation and clear status visualization

  • Local data backup – integrated data storage for measured values up to 7,5 years

Xpert selection

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

Xpert: Master your most challenging applications ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Success stories

  • Teqwave H monitors sugar concentration directly in the filling process Teqwave H monitors sugar concentration directly in the filling process

    Continuous Brix measurement of soft drinks

    Monitoring of the sugar/invert sugar content in the soft drink filling process with the concentration meter Teqwave H.

  • The Waldbrand distillery The Waldbrand distillery

    Simplified quality control in distilleries

    Waldbrand Destillerie uses Teqwave to continuously measure the alcohol concentration. The device can compensate for cross-influences and can be adapted to beverage-specific properties

  • Picture of Measuring the concentration in HUG passivation bath with Teqwave T Picture of Measuring the concentration in HUG passivation bath with Teqwave T

    Liquid analysis as part of surface treatment

    Hug Oberflächentechnik AG relies on the portable Teqwave T from Endress+Hauser for the concentration measurement of their passivation and degreasing solutions

  • air view of thyssenkrupp Presta AG in Oberegg (Switzerland) air view of thyssenkrupp Presta AG in Oberegg (Switzerland)

    Optimized cleaning for maximum product quality

    Reliable monitoring of cleaning media in part cleaning machines at thyssenkrupp Presta AG in Oberegg (Switzerland)

  • Disinfection of bottles and crates Disinfection of bottles and crates

    Cheers!

    The disinfection panel offers Maisel Brewery a stable, low-maintenance and reliable disinfection measurement system that enables optimal dosing and saves costs.
