Fieldgate SFG600

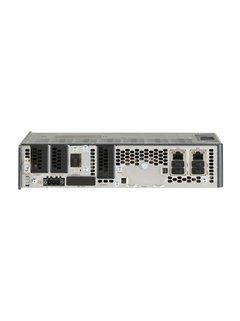

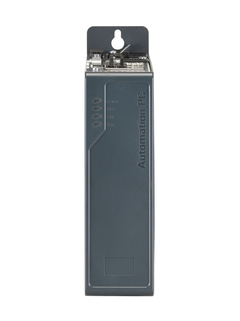

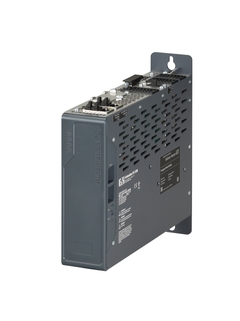

Fieldgate PAM SFG600 ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications



  • Measuring principle


  • Function

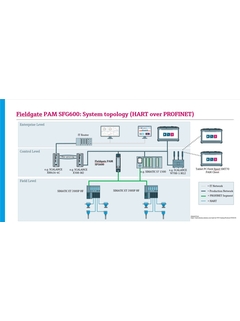

    Device configuration management gateway supports HART devices via PROFINET networks

  • CPU

    Intel Core i5 processor 7300U 2.6 GHz Dual Core

  • Memory

    SO-DIMM DDR4, 8192 MByte

  • Hard disk drive

    CFast 64 GByte MLC

  • Power supply

    24 VDC ±25 %, SELV

  • Dimensions (WxHxD)

    221.5 mm x 54 mm x 248.3 mm (8.72 " x 2.12" x 9.77")

  • Communication interface

    1x Ethernet PROFINET RJ45 (ETH1)
    1x Ethernet PAM Client RJ45 (ETH2)
    1x Ethernet service RJ45 (IF Option 2)

  • System requirements

    PROFINET remote I/Os
    Siemens ET200SP IM155-6PN HF
    Order code: 6ES7 155-6AU00-0CN0
    HART module with Siemens ET200SP IM 155-6PN HF
    Module 4xI 2-wire HART
    Order code: 6ES7 134-6TD00-0CA1

  • Certificates

    CE mark
