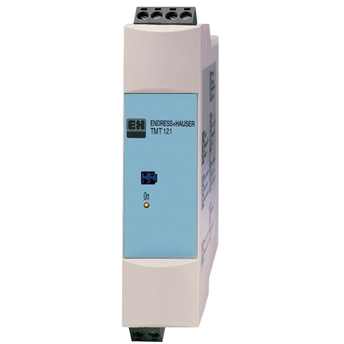

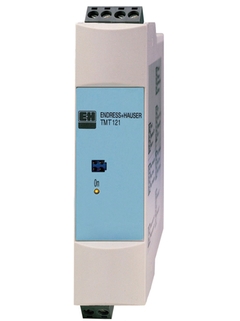

Product picture temperature transmitter TMT121

iTEMP TMT121
DIN rail temperature transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

TMT121
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K
    (Pt100, -58...392 °F) <= 0,4 °F

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals. The standardized output signal is a 4 to 20 mA signal. Swift and easy operation, visualization and maintenance by PC using operating software. Installation is realized on DIN rail as per IEC 60715 (housing width: 22.5 mm)

  • PC programmable (PCP) temperature transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal

  • Universal input for resistance thermometer (RTD), thermocouple (TC), resistance transmitter (Ω) and voltage transmitter (mV)

  • Online configuration using PC with configuration kit (PC-software ReadWin 2000 and USB-interface connection)

Benefits

  • High accuracy in total ambient temperature range

  • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

  • Safe operation in hazardous areas - International approvals such as ATEX Ex ia, NEPSI, FM IS, CSA IS

  • EMC to NAMUR NE 21, CE

  • Online configuration during measurement

  • Galvanic isolation

  • Output simulation
